Pistachio Roasting Machine
FR - 200 ( 200 kg/h )

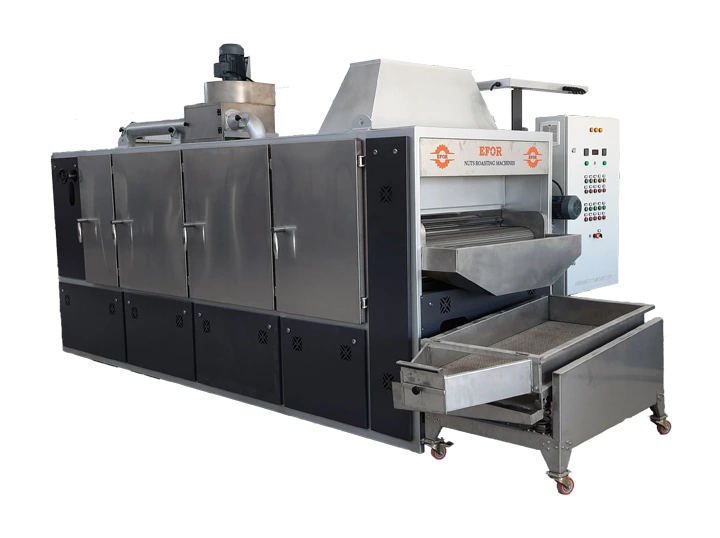

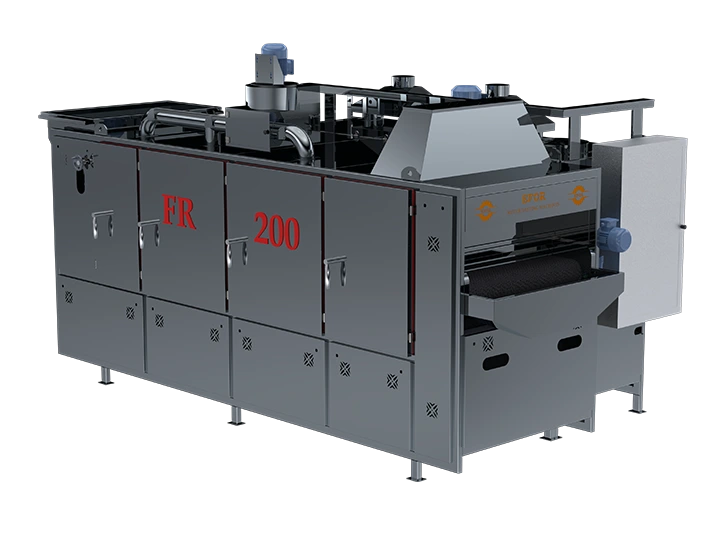

FR - 200 Belt Nut Roasting Machine is our machine with a roasting capacity of 200 kg per hour. It is a nut roasting oven working with two double-stage burners designed for medium-sized industries. The FR-200 belted nut roasting oven consists of two roasting rooms, a resting room and a cooling room. Air circulation fans are used in the FR-200 roasting oven for homogeneous roasting of the nuts, with a dehumidification fan to remove excess moisture during the roasting process. synchronous operation is provided. In order for the roasted nuts to become suitable for packaging quickly, a resting and cooling room has been added to our machine, and the temperatures of the roasted nuts have been reduced to the ambient temperature. Burners working with LPG, Natural Gas and Diesel fuels are preferred in the heating system of the nut roasting machine. Heating can also be provided with electrical energy by using optional resistance heaters. In our machines, the combustion chamber and the nut heating chamber are produced in complete isolation from each other. Thanks to the developed automation system, you can control your machine through the touch panel, create recipes for the products and record the roasting settings specific to your business and ensure its continuity. Our control system, which offers integration opportunities for your industrial enterprises, works in harmony with security and central control systems.
Proportions
Length
4630 - mm
Width
2520 - mm
Height
2580 - mm
⚡ Electrical Components
12 kW
ENERGY PROPERTIES
FUEL TYPE
Motorin
Minimum
4 lt/h
Maximum
19,9 lt/h
Average
11,94 lt/h
FUEL TYPE
Electrcy
Resistance
62,4 kW
FUEL TYPE
Lpg
Minimum
1,55 Nm3/h
Maximum
8,97 Nm3/h
Average
5,38 Nm3/h
FUEL TYPE
Natural Gas
Minimum
4,67 Nm3/h
Maximum
23,28 Nm3/h
Average
13,97 Nm3/h
PRODUCT CAPACITY
| CAPACITY | KG/HOUR |
| Salted Peanuts | 230 |
| In Shell Peanuts | 160 |
| Pistachios | 270 |
| Salted Chickpeas | 210 |
| Sunflower seeds | 200 |
| Pumpkin seeds | 200 |
| Almond | 260 |
| In Shell Almonds | 210 |
| Hazelnut | 265 |
| In Shell Hazelnut | 210 |
| Cashew | 200 |
